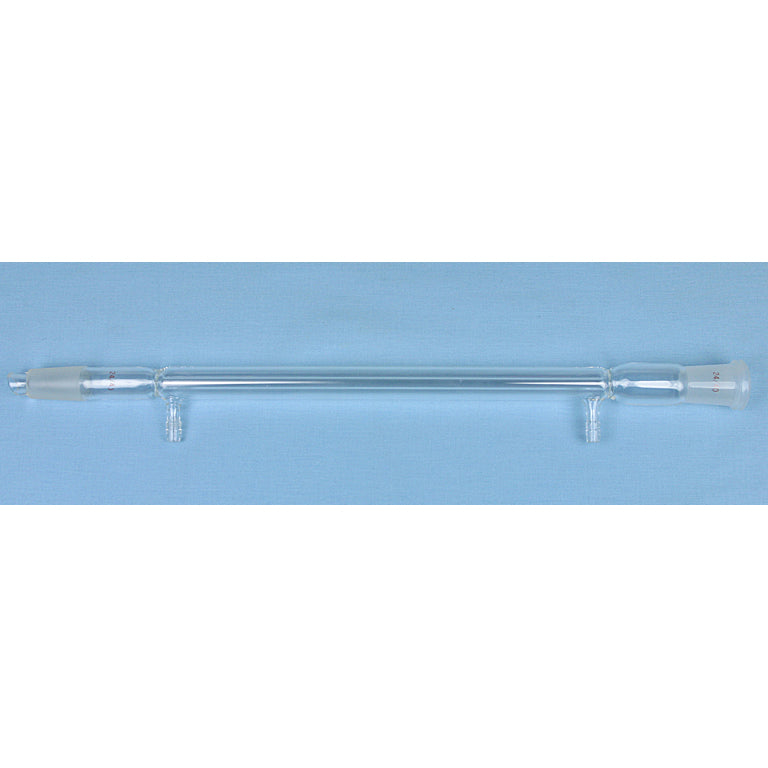

|The West condenser consists of a straight tube surrounded by an outer tube or water jacket.
- Manufactured from borosilicate glass
- Standard taper outer joint at the top and a lower inner joint both of which are the same size
- The West differs from the Liebig in the size of the inner tube.
- Narrow annular space between jacket and inner tube of the West condenser provides for excellent cooling efficiency due to the increased flow rate of water.
||300 mm / 12"
||492 mm / 19.375"
|Jacket Outside Diameter
||22 mm / 0.86"
||10 mm / 0.39"
