The Mi605 is a portable, microprocessor-based, Dissolved Oxygen meter with automatic calibration and temperature compensation (ATC) specifically designed for spot sampling applications. Dissolved Oxygen measurements can be displayed in parts per million (ppm=mg/L) or in % of saturation. The temperature is indicated in Celsius from 0 to 50 °C with 0.1 resolution. The meter compensates salinity and altitude automatically after manual input.
Calibration is very simple and fast: just expose the polarographic Dissolved Oxygen probe MA840, supplied with the instrument, to air and press the CAL button. No need for chemical solutions! A hold button allows the user to freeze the reading on the LCD.
The low battery indicator and the easy to replace screw on cap membranes make the Mi605 a compact instrument and ideal for all applications: aquaculture, wastewater, environmental and educational.
| Specifications |
| O2 Range |
0.0 to 45.00 mg/l (ppm) |
| % Saturation O2 Range |
0.0 to 300% |
| Temp Range |
0.0 to 50.0 °C / 32 to 122 °F |
| O2 Resolution |
0.01 mg/l (ppm) |
| % Saturation O2 Resolution |
0.1 % |
| Temp Resolution |
0.1 °C |
| O2 Accuracy |
±1.5% Full Scale |
| % Saturation O2 Accuracy |
±1.5% Full Scale |
| Temp Accuracy |
±0.5 °C |
| O2 Typical EMC Deviation |
±0.3 mg/l (ppm) |
% Saturation O2
Typical EMC Deviation |
±3.5% |
| Temp Typical EMC Deviation |
±0.5 °C |
| DO Calibration |
automatic in saturated air |
| Temperature Compensation |
automatic, from 0 to 50 ∞C / 32 to 122 °F |
| Altitude Compensation |
0 to 4000 m; 100 m resolution |
| Salinity Compensation |
0 to 80 g/L; 1 g/L resolution |
| DO Probe |
MA840/3 (included) |
| Temperature Probe |
Included in DO probe |
| Environment |
0 to 50 °C / 32 to 122 °F; max RH 100% |
| Battery Type |
1 x 9V (included) |
| Battery Life |
approx. 100 hours of use |
| Auto-off |
after 4 hours of non-use |
| Dimensions / Weight |
200 x 85 x 50 mm / 280 g (with battery) |

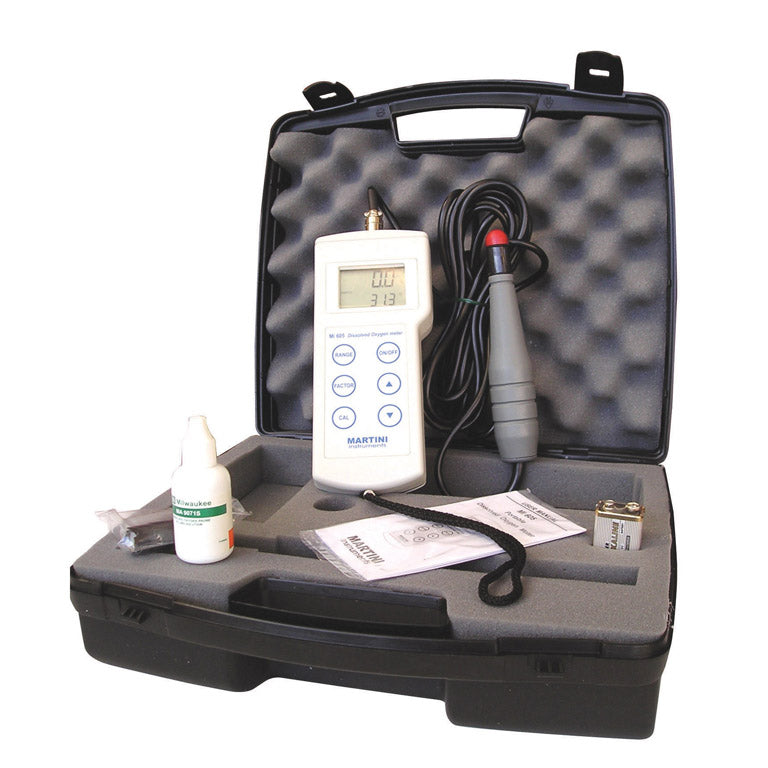

| The Mi605 is supplied complete with a MA840 D.O. polarographic probe with a 3 m cable, calibration screwdriver, 2 spare MA9071s membranes, (30 mL) electrolyte solution, carrying case battery and instructions. |
 Manual
